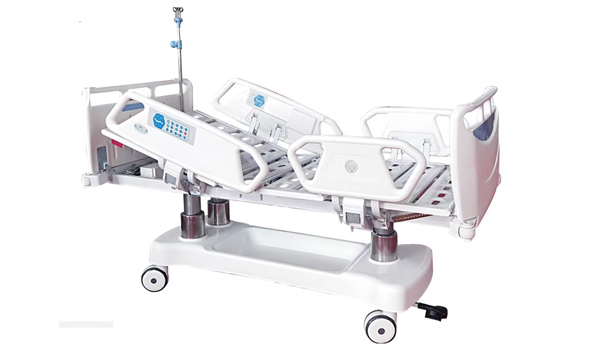

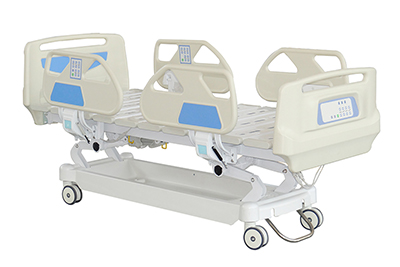

B1 MULTIFUNCTIONAL ELECTIRC NURSING BED(HHX)

1. Size: 2025/2230*990/1050*500/1000mm;

2. Overall length: 2025-2230mm. Full width: when the bed rail is raised: 1050mm, when the bed rail is down: 990mm.

Bed height range: Highest: 1000mm Lowest: 500mm. Patient release surface: 900*1960mm

Bed board position adjustment Back board: 0-75 degrees, leg board: 0-45 degrees.

The whole bed is tilted forward: 0-10 degrees.

The whole bed is tilted back: 0-10 degrees.

Maximum load: 250KG.

Central control mute wheel: 125mm.

Configuration: electric five-function punching board, ABS bed head and foot end, four small guardrails, mute wheels

●Universal mute casters, easy to move and meet your different needs.

●Overall braking function. It can be fixed by stepping, safe and stable, to meet your different needs.

● ABS lifting large barrier design, smooth edge, comfortable to use, to ensure the safety of family getting in and out of bed.

●Intelligent remote control design, electric control, reduce the burden of home care, easy to use.

●ABS bed head and foot end design, smooth edge, comfortable to use, durable

Contact US

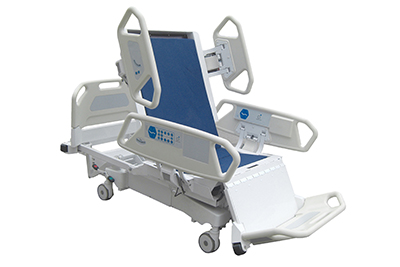

B3 MULTIFUNCTIONAL ELECTRIC NURSING BED(JDX)

1. Size 2200(±50mm)×950(±50mm)×380-850(±50mm)mm;

2. The bed frame is welded with a 40×80×1.2mm rectangular tube, with a flat surface and no weld traces;

3. The bed panel is made of steel strips with a thickness of ≥1.5mm, and the four frames of the back panel are reinforced with sheet metal to enhance the bearing capacity.

4. The load of the bed is ≥240kg, and the outside or four corners of the double bed are equipped with anti-collision corners;

5. Folding Back fold ≥0-75° Leg fold ≥0-40°

6. Back-knee linkage

Lean forward and backward: 0~15°

Turn left and right: 0~15°

Possesses the function of lying down with head down: 0-12°±2°

7. Overall lift: 380~850mm

8. One-button chair position

9. Adopt ABS headboard and tailboard, smooth curved design, beautiful and elegant, with hidden locking device, stable and reliable, easy to disassemble, there is a patient information card slot on the outside of the tailboard;

10. Has a battery backup

Contact US

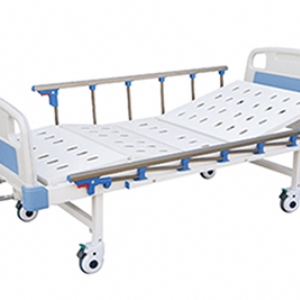

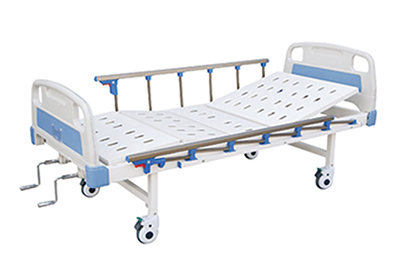

A19 ABS PUNCH  TWO CRANKS MANUAL BED

Specifications: 1950*900*500mm

technical parameter:

Back lift 0-80±5º

Leg lift 0-40±5º

Product Description:

●Bed frame: It is made of high-quality steel welded and formed, and the surface is electrostatically sprayed, which is durable and beautiful.

●Bed board: It is made of high-quality cold-rolled steel plate by one-time stretching, and the surface is electrostatically sprayed, which is anti-corrosion and easy to clean.

●The head and tail of the bed are made of ABS high-quality engineering plastic, which is beautiful in appearance and soft in color. It is installed with a lock and can be easily disassembled.

●Shaking handle: stainless steel hidden handle, two-way extreme protection.

●Guardrail: Aluminum alloy guardrail, light and durable, anti-pinch hand design.

Contact US

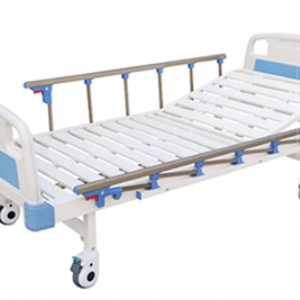

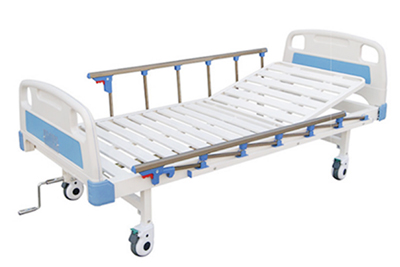

A11 ABS PUNCH ONE CRANKS MANUAL BED

Product specification: 1950*900*500mm

Technical parameters: back lift 0-80±5º

Product Description:

●Bed frame: It is made of high-quality steel welded and formed, and the surface is electrostatically sprayed, which is durable and beautiful.

●Bed board: It is made of high-quality cold-rolled steel plate by one-time stretching, and the surface is electrostatically sprayed, which is anti-corrosion and easy to clean.

●The head and tail of the bed are made of ABS high-quality engineering plastic, which is beautiful in appearance and soft in color. It is installed with a lock and can be easily disassembled.

●Caster wheels: Four φ125 brake wheels, high wear resistance, no noise, with four-foot brake device.

●Shaking handle: stainless steel hidden handle, two-way extreme protection.

●Guardrail: Aluminum alloy guardrail, light and durable, anti-pinch hand design.

Optional configuration: mattress, infusion pole, bed head, telescopic/reversible dining table.
